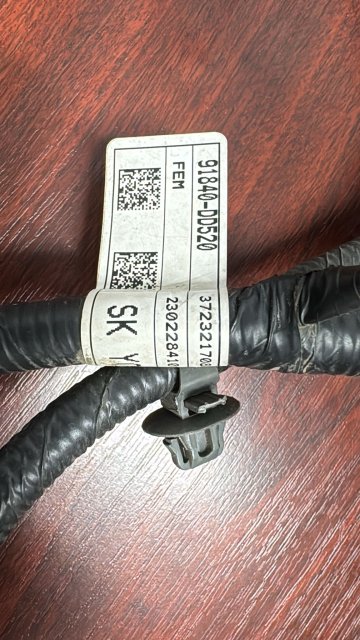

I need the repair manual for the 2023 Hyundai Kona 1 Electric, and I need to see the wiring diagram of the 20-pin connector of the harness, harness code 91840-DD520. More specifically, I need to clarify which of the two blue, black, or orange wires, all located in the large 20-pin connector, go to the Distronic or to the actuator of the active grille.
Please help me to identified wire from trager instalation
- Thread starter sawkona1
- Start date
Thread Starter
#2
I discovered some wires that appear to interface with ACC/Distronic and active grille. I have two wires with same color (blue/blue, black/black, orange/orange) and I’m afraid swapping them could damage modules.

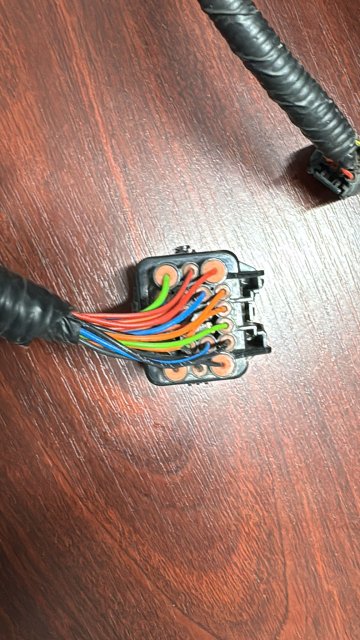

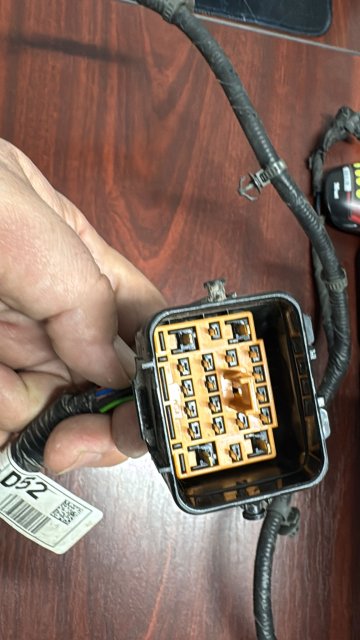

Can someone share the pinout table or wiring diagram for the 20-pin trailer connector, or at least which pins correspond to power/ground/turn-stop vs CAN/ADAS lines? Photos attached
Can someone share the pinout table or wiring diagram for the 20-pin trailer connector, or at least which pins correspond to power/ground/turn-stop vs CAN/ADAS lines? Photos attached
